Attabot

Triplex Robot Mower
Designed for Fairways

WATCH

Features

100% Electric

Fully Autonomy

Pro Mowing Quality

Lower Spending

100% Electric

Quiet and emission-free

No hydraulic leakage

Compliant with environmental regulations

Fully Autonomy

Mows 1.5 acres | 6070 sqms per hour

8-10 hours mowing time per charge

Autonomous transition between fairways

Pro Mowing Quality

Cutting units tailored to fairways

High quality stripes

Smaller clipping and lesser soil compaction

Lower Spending

Save 150 labor hours/month for other tasks

80 % less maintenance cost

75 % less energy cost

Functionalities

  • All-wheel Drive and Zero Turn

    With 4 driving motors, Attabot haszero turn,70% slope climbing, and40% slope mowing capabilities

  • Exchangeable Batteries

    Zero recharging time, let itwork 24/7 continually,whenyour schedule is tight

  • Obstacles Avoidance

    Equipped with a 3D LiDAR andfive 3D cameras, Attabot has a360°FOV to detect obstacles

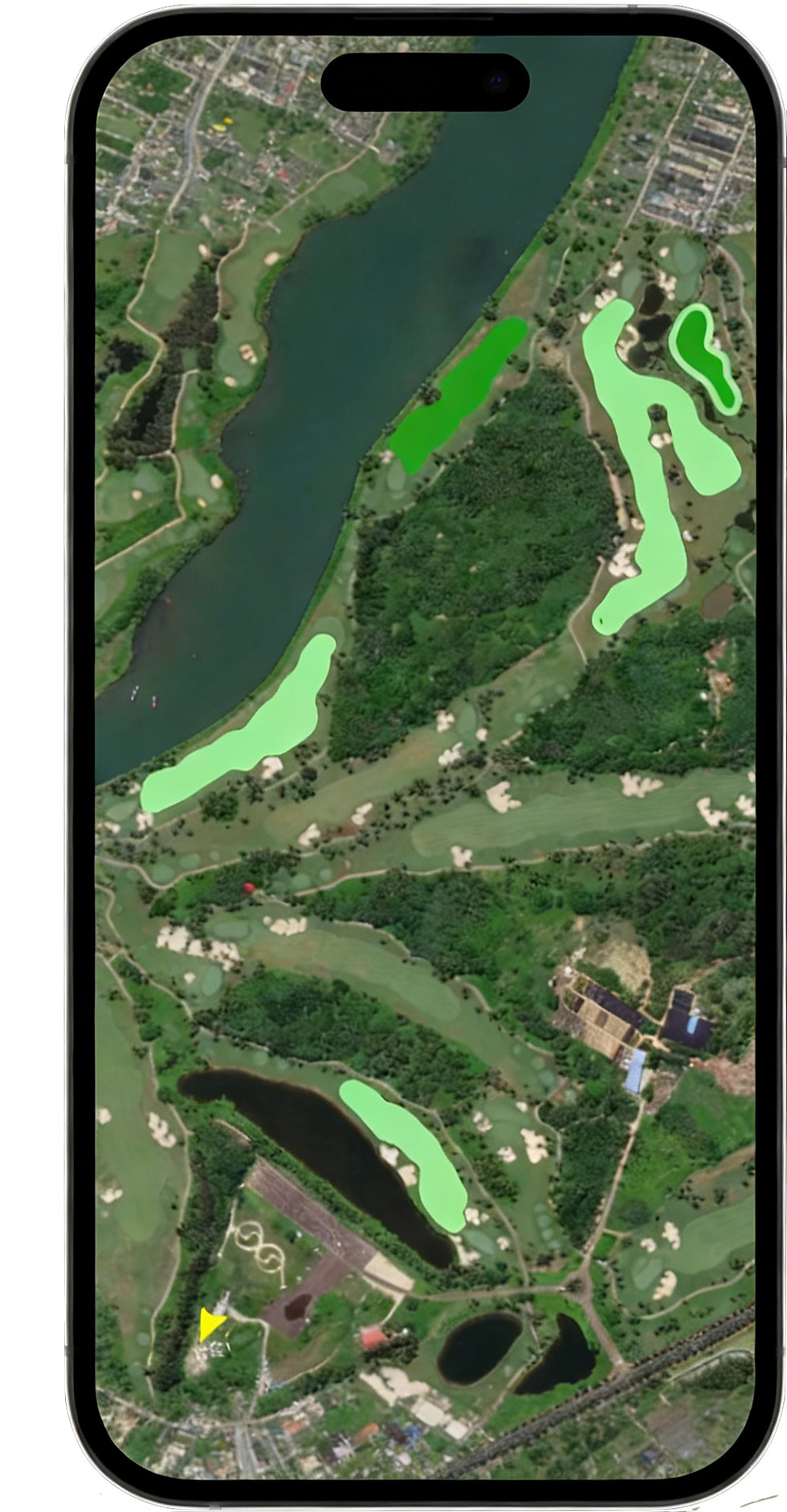

  • Large Virtual Boundaries

    Perimeter wires Free. RTK signal covers a radius of 2 miles| 3 km with bridge stations

  • Rain Proof

    With IP65 protection, Attabot works impeded during small raining and irrigating

  • Auto Cutting Height Adjustment

    Self-calibrated cutting units, accurately change the height of cut in seconds

  • Stripe Like A Pro

    Set up your ideal striping pattern, then Attabot will make it come true

Specifications

Key Attributes
Cutting System
Weight and Dimensions
Product Data
Mowing Efficiency6070 sqm/ h | 1.5 Acres/ h
Mowing Time Per Charge8-10 Hours
Localization SystemRTK, Virtual Boundary
Working Area2-mile radius
Striping PatternsStriping, Half-half, Checkerboard
Height of Cut, HOC9 - 35 mm | 0.35 – 1.4 inch
Cutting Height AdjustmentAutonomous
Cutting Width1400 mm | 55.1 inch
Cutting SystemTriplex * 3 Discs * 5 Blades
Length1850 mm | 72.8 in
Width1550 mm | 61.0 in
Height725 mm | 28.6 in
Weight350 kg | 770 lbs
Driving MethodAll Wheels Drive
Maximum Driving Slope70% | 35°
Maximum Mowing Slope46% | 20°
Protection IndexIP65
Key Attributes
Mowing Efficiency6070 sqm/ h | 1.5 Acres/ h
Mowing Time Per Charge8-10 Hours
Localization SystemRTK, Virtual Boundary
Working Area2-mile radius
Striping PatternsStriping, Half-half, Checkerboard
Cutting System
Height of Cut, HOC9 - 35 mm | 0.35 – 1.4 inch
Cutting Height AdjustmentAutonomous
Cutting Width1400 mm | 55.1 inch
Cutting SystemTriplex * 3 Discs * 5 Blades
Weight and Dimensions
Length1850 mm | 72.8 in
Width1550 mm | 61.0 in
Height725 mm | 28.6 in
Weight350 kg | 770 lbs
Product Data
Driving MethodAll Wheels Drive
Maximum Driving Slope70% | 35°
Maximum Mowing Slope46% | 20°
Protection IndexIP65
